SOLD AS EACH
*A WARRANTY/span>ACKNOWLEDGEMENT FORM WILL BE/span>EMAILED/span>TO YOU AND MUST BE COMPLETED BEFORE SHIPPING. BY PURCHASING THIS HIGH PERFORMANCE PRODUCT YOU AGREE TO THE/strong>TERMS AND CONDITIONSET FORTH IN THE LIMITED WARRANTY EXCLUSIONOLICY

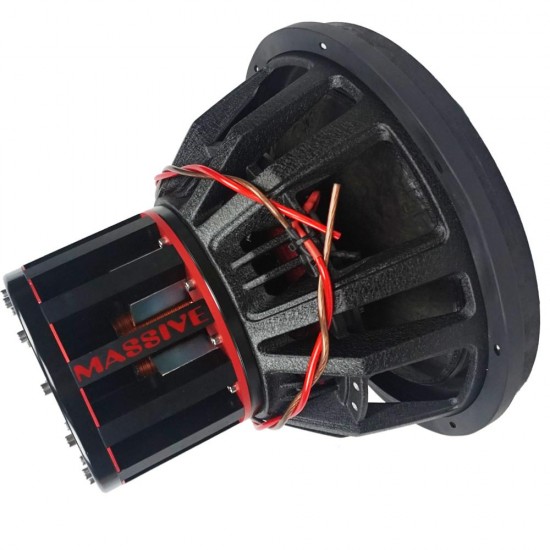

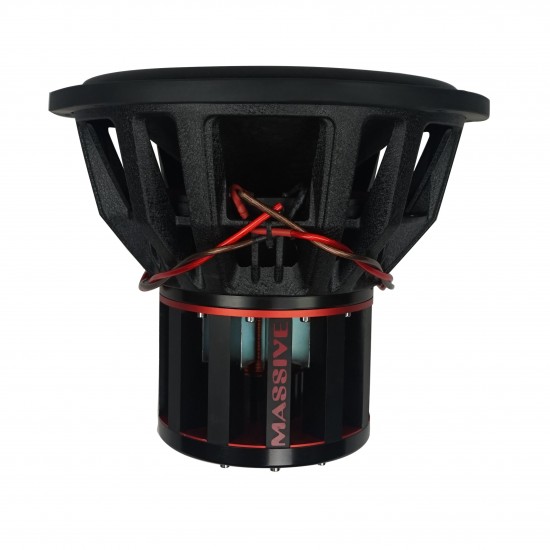

Built for High Performance SPLhe BOA-N Series Ultra Efficient 15 BOA-NSeries Neodymium Subwoofers are dual 1 Ohm at 6,000 Watts RMS / 12,000 Watts MAX. The BOA15-N uses 3 Dual Impedance Black Anodized Voice Coil formers with flat wound windings and have 100% pure copper wires connected directly to the voice coils. Both 12″ and 15″ subwoofers use 52 A 12 Lens Grade Stacked Neodymium magnets in an open motor design. Both models are bolted into heavy duty rugged industrial textured cast aluminum baskets that help achieve2.7 dB efficiency with [email protected]/m.
FEATURES:
- A 12 Lens Grade 52 Neodymium Open Motor Design
- Heavy Duty Rugged Industrial Textured Cast Aluminum Basket
- Kevlar Fibereinforced Non-Pressed Paper Cone withndustrialextured Finish
- EROM Foam Surround with Red Stitching
- 3 Dual Impedance Black Anodized Voice Coil Former with Flat Winding Wires
- Reinforced Fiberglass Woven Dust Cap
- High Energy Neodymiumagnets
- Over Sized Mirror Image 6 Layers Poly/Nomex Spiders
- Black Anodized One Piece Pole-Plate for added Motor Force/li>
- Triple Black Poly Cotton Spiders with Mirror Image Layout
- Heavy Duty Pure Copper Direct Input Wires Connected to each Voice Coil
- Dual 1 Ohm Impedance
SPECIFICATIONS:
| Size | 15″ |
| Peak Power | 12,000 watts |
| RMS Power | 6,000 watts |
| Cone | Non-Pressed Paper |
| Voice Coil | 3″ Dual 1 Ohm Flat Wound |
| Surround | EROM Foam with Red Stitching |
| Magnet | 108oz Triple Stackedspan>Neodymium |
| Terminals | Heavy Duty Copper Direct Input Wires Connection |
| Basket | Die Cast |
| Tinsel Leads | Heavy Duty Triple |
| X-Max (2-Way) | 13 mm |
| SPL | 92.7B |
| Ported Box | 21.1″ H x 23.5″ D x 21.9″ W(17.52 sq.in Port) |
