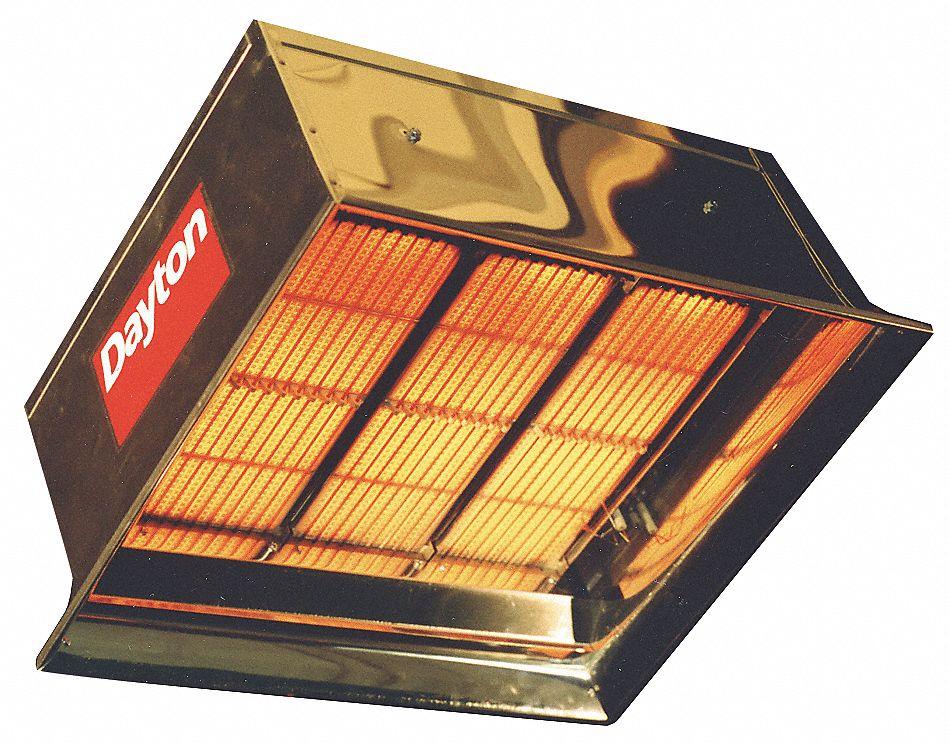

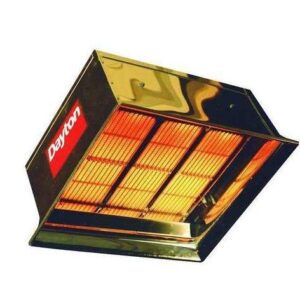

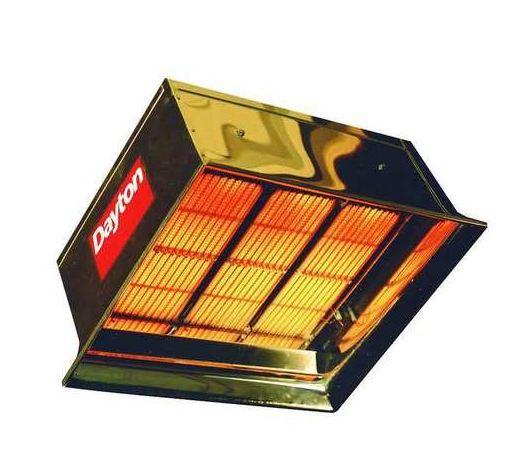

Product Type Suspended Infrared Flat Panel Heater, Fuel Type Natural Gas, Heating Capacity Input 90,000 BtuH, Min. Mounting Height 16 to 18 ft, Floor Coverage @ Minimum Mounting Height 20 ft x 20 ft, Overall Height 22 1/2 In, Overall Width 26 5/8 In, Overall Depth 15 1/4 in, Mounting Height 18 to 20 ft, Typical Coverage @ Mounting Height 24 ft x 24 ft, Mounting Location Ceiling, Mounting Type Chain Suspension, For Use Outdoors Indoor Use Only, Control Voltage 24 V AC, Frequency 60 Hz
- Item Type: Gas Infrared Flat Panel Heater
- Brand: DAYTON
- Manufacturer Part Number: 5VD65
- Item: Gas Infrared Flat Panel Heater
- Width: 26 5/8 in
- Gas Type: NG
- BtuH Input: 90,000
- Height: 22 1/2 in
- Depth: 15 1/4 in
- Includes: Chain Hanging Set
- Radiant Surface: 255 sq in
- Clearance to Combustibles Side: 48 in
- Floor Dia. @ Mounting H: 20-28 ft @ 16-18 ft
- Hz: 60
- Clearance to Combustibles Behind 30 in
- Typical Sq. Ft. Coverage @ Mtg. Ht.: 575-785 @ 16-18 ft
- Heater Voltage: 24V AC
- Gas Inlet: 1/2 in NPT
- Clearance to Combustibles Top: 42 in
- Clearance to Combustibles Below/Front: 98 in
- Heating Area: 576 sq ft
- Ignition Type: Direct Spark
- Standards: CSA Certified
- Overall Height: 22 1/2 in
- Overall Width: 26 5/8 in
- Heat Output: 90,000 BtuH
- Gas Connection Type: NPT
- Product Type: Suspended Infrared Flat Panel Heater
- Radiant Surface Area: 255 sq in
- Overall Dimensions – H x W x D: 22 1/2 in x 26 5/8 in x 15 1/4 in
- Venting: Vent-Free
- Clearance to Combustibles – Top x Below x Sides: 42 in x 98 in x 48 in
- Floor Coverage @ Minimum Mounting Height: 20 ft x 20 ft
- Thermostat Included: No
- Frequency: 60 Hz
- Fuel Consumption: 0.865 thm/hr
- Overall Depth: 15 1/4 in
- Control Voltage: 24 V AC
- Mounting Height: 18 to 20 ft
- Typical Coverage @ Mounting Height: 24 ft x 24 ft
- Fuel Type: Natural Gas
- Min. Mounting Height: 16 to 18 ft
- Heating Capacity Input: 90,000 BtuH
- Mounting Location: Ceiling
- Element Type: Ceramic Tile
- Heating Method: Infrared
- Reflector Material: Highly Polished Aluminum
- For Use Outdoors: Indoor Use Only
- Gas Connection Size: 1/2 in
- Operating Temperature: 1,780 Degrees F
