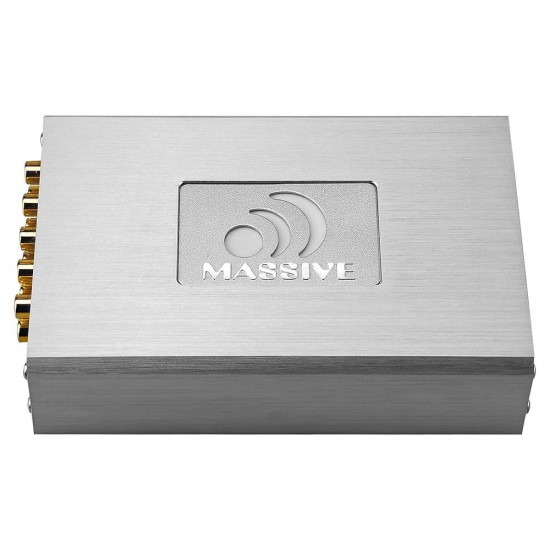

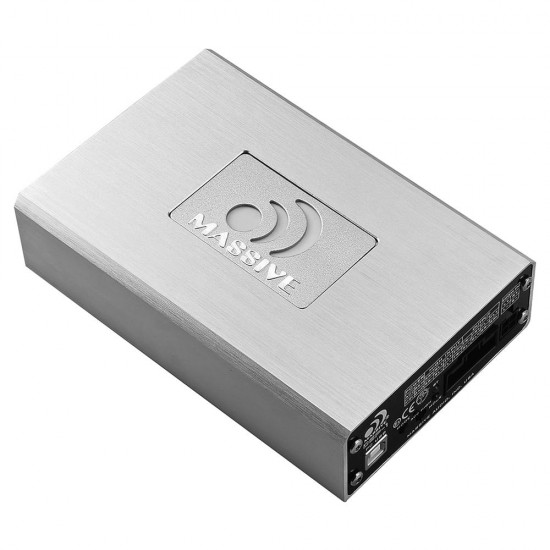

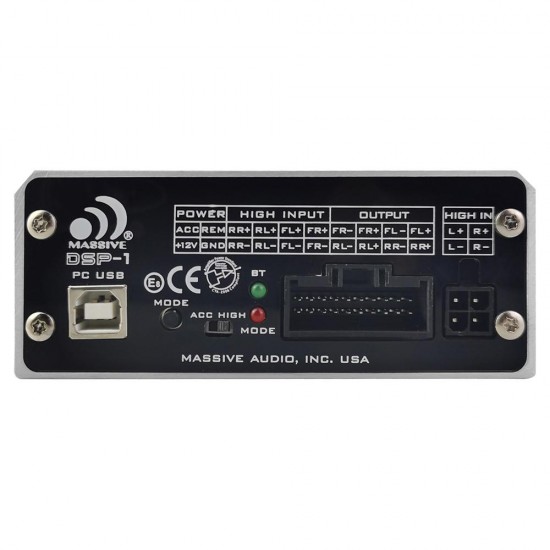

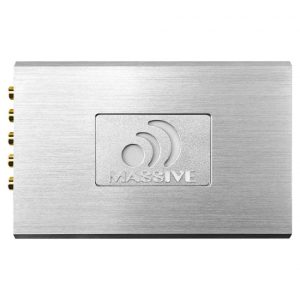

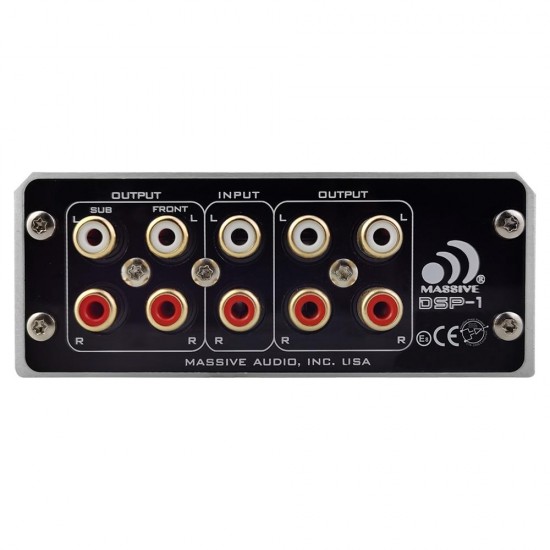

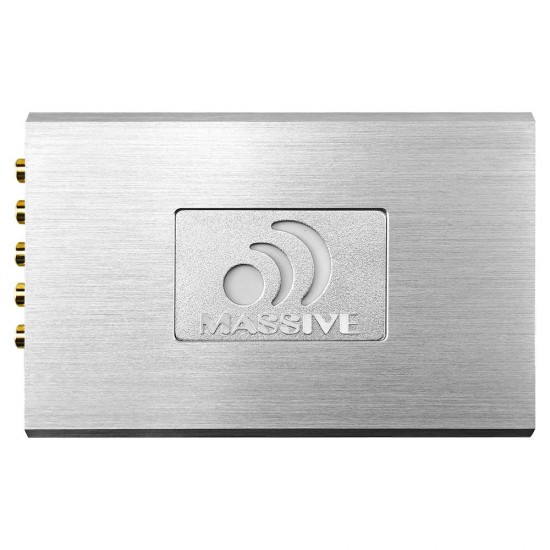

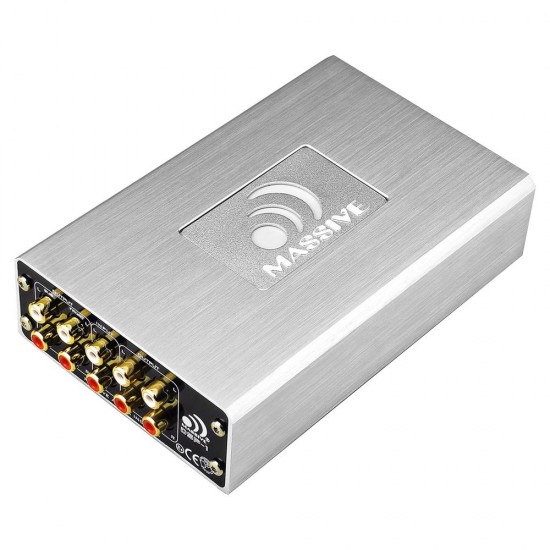

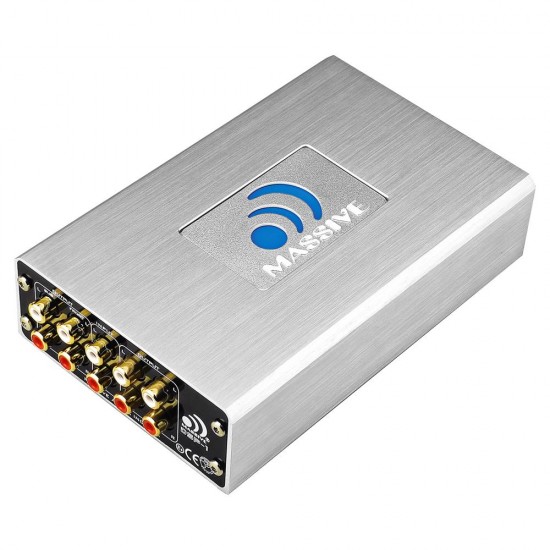

DSP-1 – Digital Signal Processor Built-In 4 Channel Amplifier

The DSP–1 is a unique/span>combination of a Four Channel amplifier and a Digital Signal Processor in one/span>piece. We have used uncompromising design and engineering that Massive Audio customers are accustomed to, incorporating the latest in small format/span>technology. Not only do you get a high performance, high quality product, but you also are saving a lot of space. The same proven quality of Massive Audio lives on in the new DSP–1.

FEATURES:

• Eight (8) fully configurable output channels capable/span>of 4V rms (12.5V pp) RCA output
• Eight (8) summing input channels, compatible with Low-Level& High-Level input types
• Bluetooth Audio Streaming with Codec for audiophile audio/span>quality
• Elite Audio Reproduction from:
  a) 24-bit resolution ADC/DACs
  b) 56-bit double precision signal processing
  c) Frequency Response from 10hz to 20Khz (+/- 1dB)
  d) THD (Total Harmonic Distortion) < 0.05%
  e) SNR (Signal to Noise Ratio) > 95dB
• Audio Sign Processor:
  a) Precision crossover system: Linkwitz-Riley &Butterworth topologies
  b) 12 / 18 / 24 / 36 / 48 dB octave crossover slopes available
  c) Full Pass / High Pass / Low Pass / Band Pass / Peak /Shelving Filters
  d) Up to 31 Parametric equalizer bands with adjustable/span>frequency & bandwidth
  e) Full Time-Alignment correction & Phase rotation
  f) R.M.S. limiter with adjustable Threshold, Attack, & Decay

SPECIFICATIONS:
