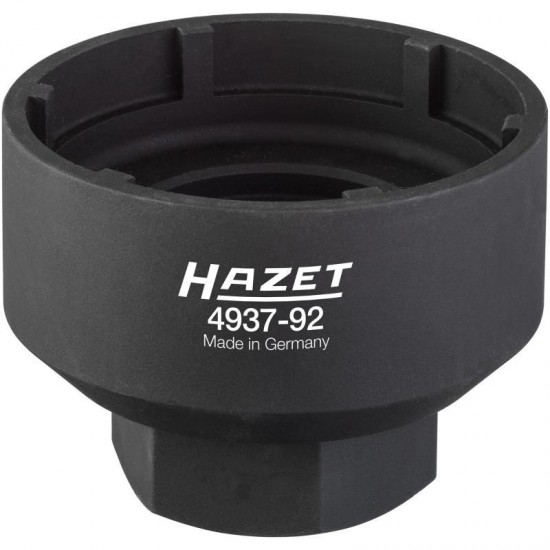

Hazet 4937-92 Commercial Vehicle Wrench for Front Axle MAN, 114mm

Hazet

4937-92

Commercial vehicle pin wrench

Retail

Germany

4000896201952

Proposition 65 Warning

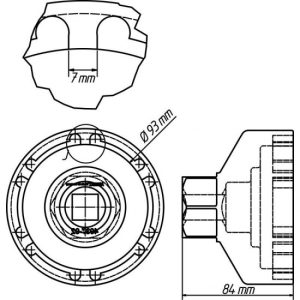

84 mm

Black

Burnished

114 mm

Inside 100.5 mm
Inside (pin-pin): 92.5 mm
Outside 114 mm
6 inside pins with 7 mm width

Square Drive 20 = 3 as well as outside hexagon s 46 mm

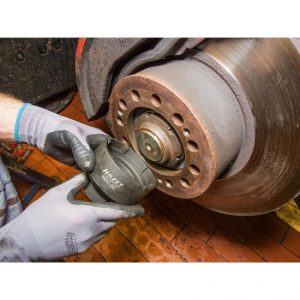

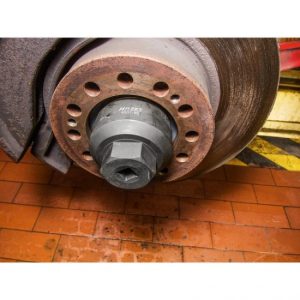

Pin wrench MAN TGX, TGA, TGS all models, model year 2000
For e.g. front axle V9-82L-01 (disc brake with ABS) and MERCEDES-BENZ Atego rear axle as well as MAN MERCEDES-BENZ VAN HOOL and NEOPLAN buses

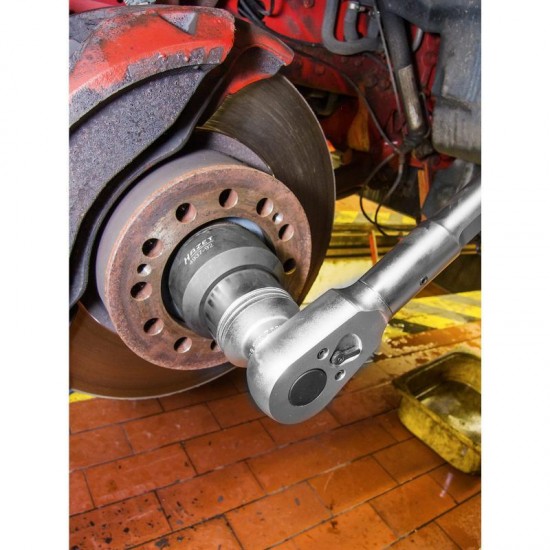

Can be used with i 20 = 3 impact wrench (9013 MG 9013 M) and torque wrench (6145-1 CT 6150-1 CT)
High fitting accuracy
Precise pin geometry for ideal tool operation in pin nuts
Solid design: high (shape) stability even with very high loosening or tightening torques
Screw connection tightening torque 750C00 Nm (please observe manufacturer’s instructions)
